NSK UCFA208D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFA208D1
Included products
Bearing
Housing
FA208D1
Housing

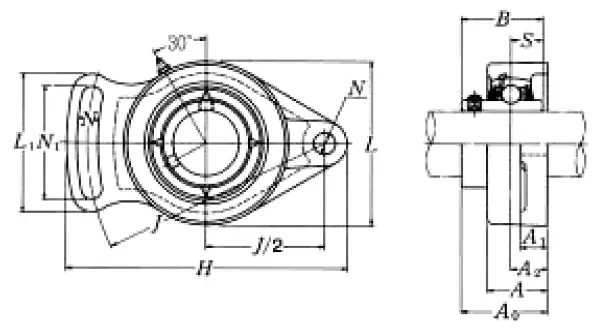

Nominal Dimensions
d
40
mm
Bore diameter
N1
69
mm
Length of attachment bolt hole
L,L1
100
mm
Overall height
J
142
mm
Distance between attachment bolts
N
15
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
16
mm
Flange width
A
36
mm
Base width
A0
52.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
H
171
mm
Overall length
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
84
mm
Foot width
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
1.5
kg
Mass approx.
