NSK UCFA209D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFA209D1
Included products
Bearing
Housing
FA209D1
Housing

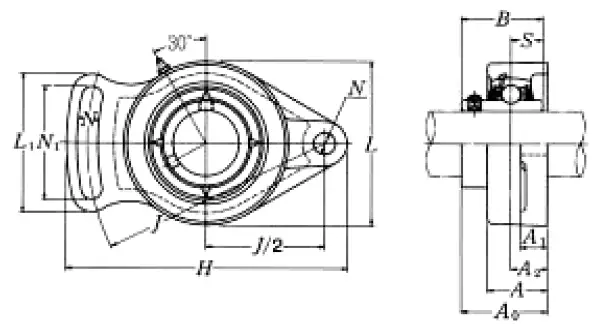

Nominal Dimensions
d
45
mm
Bore diameter
N1
72
mm
Length of attachment bolt hole
L,L1
110
mm
Overall height
J
146
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
18
mm
Flange width
A
38
mm
Base width
A0
52.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
H
179
mm
Overall length
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
88
mm
Foot width
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
1.9
kg
Mass approx.
