NSK UCFA210D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFA210D1
Included products
Bearing
Housing
FA210D1
Housing

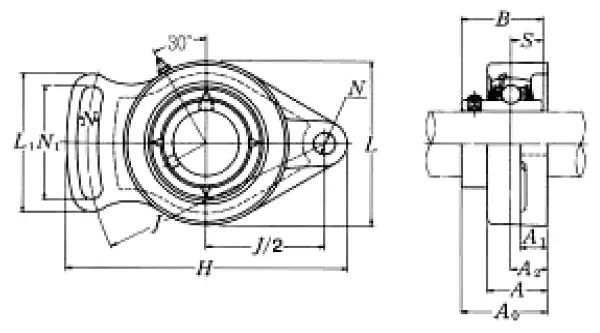

Nominal Dimensions
d
50
mm
Bore diameter
N1
75
mm
Length of attachment bolt hole
L,L1
115
mm
Overall height
J
155
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
18
mm
Flange width
A
40
mm
Base width
A0
54.6
mm
Overall width
B,B1,B2
51.6
mm
Width of inner ring
H
189
mm
Overall length
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
92
mm
Foot width
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
mass
2.2
kg
Mass approx.
