NSK UCFE207D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFE207D1
Included products
Bearing
Housing
FE207D1
Housing

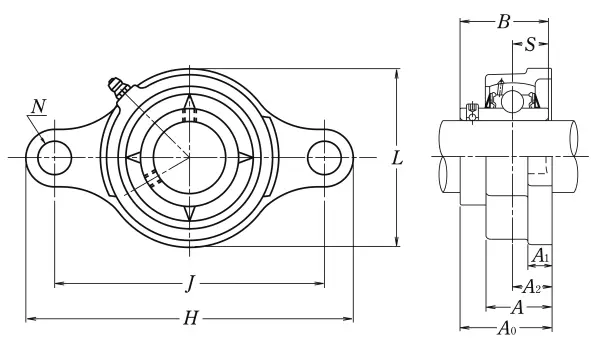

Nominal Dimensions
d
35
mm
Bore diameter
L,L1
86
mm
Overall height
J
130
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
19
mm
Flange width
A1
12
mm
Flange width
A
32
mm
Base width
A0
44.4
mm
Overall width
B,B1,B2
42.9
mm
Width of inner ring
H
158
mm
Overall length
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
0.9
kg
Mass approx.
