NSK UCFE210D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFE210D1
Included products
Bearing
Housing
FE210D1
Housing

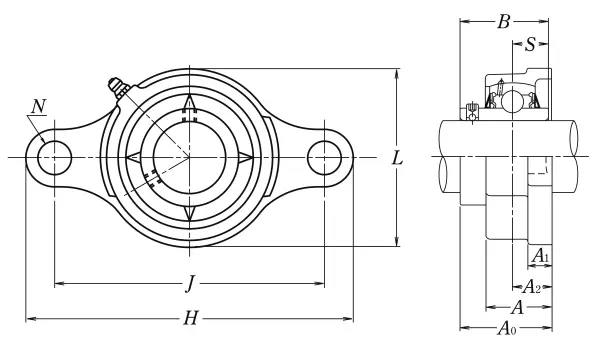

Nominal Dimensions
d
50
mm
Bore diameter
L,L1
106
mm
Overall height
J
157
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
13
mm
Flange width
A
37
mm
Base width
A0
54.6
mm
Overall width
B,B1,B2
51.6
mm
Width of inner ring
H
189
mm
Overall length
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
mass
1.5
kg
Mass approx.
