NSK UCFH207D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFH207D1
Included products
Bearing
Housing
FH207D1
Housing

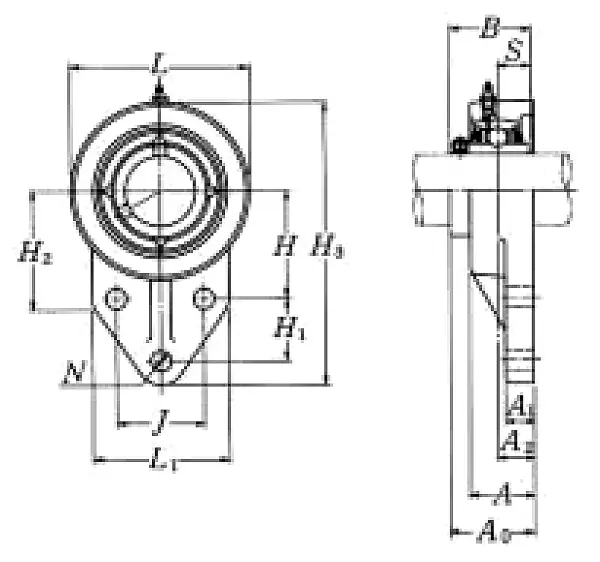

Nominal Dimensions
d
35
mm
Bore diameter
L,L1
90
mm
Overall height
H
55
mm
Height of spherical seat centre
H3
144
mm
Overall height
J
46
mm
Distance between attachment bolts
N
10
mm
Diameter of attachment bolt hole
A2
19
mm
Flange width
A1
15
mm
Flange width
A
34
mm
Base width
A0
44.4
mm
Overall width
B,B1,B2
42.9
mm
Width of inner ring
H1
32
mm
Distance between attachment bolt holes
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
L1
70
mm
Foot width
Mounting information
G
M8
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.3
kg
Mass approx.
