NSK UCFH208D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFH208D1
Included products
Bearing
Housing
FH208D1
Housing

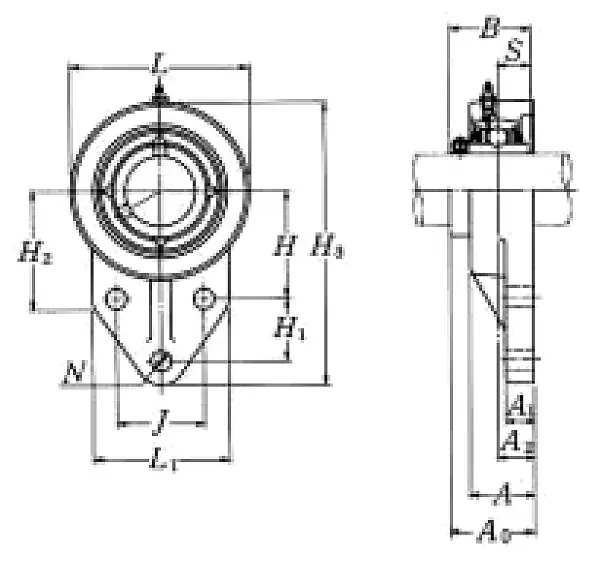

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
100
mm
Overall height
H
60
mm
Height of spherical seat centre
H3
164
mm
Overall height
J
50
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A2
21
mm
Flange width
A1
16
mm
Flange width
A
36
mm
Base width
A0
51.2
mm
Overall width
B,B1,B2
49.2
mm
Width of inner ring
H1
41
mm
Distance between attachment bolt holes
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
78
mm
Foot width
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
1.8
kg
Mass approx.
