NSK UCHP205D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCHP205D1
Included products
Bearing
Housing
HP205D1
Housing

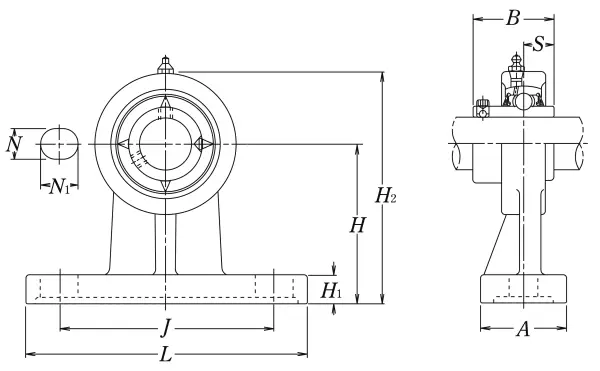

Nominal Dimensions
d
25
mm
Bore diameter
N1
19
mm
Length of attachment bolt hole
L
142
mm
Overall length
H
80
mm
Height of spherical seat centre
J
105
mm
Distance between attachment bolts
N
13
mm
Diameter of attachment bolt hole
A
50
mm
Base width
H1
13
mm
Distance between bottoms of piloting grooves
B
34.1
mm
Width of inner ring
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
H2
114
mm
Overall height
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
