NSK UCHP208D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCHP208D1
Included products
Bearing
Housing
HP208D1
Housing

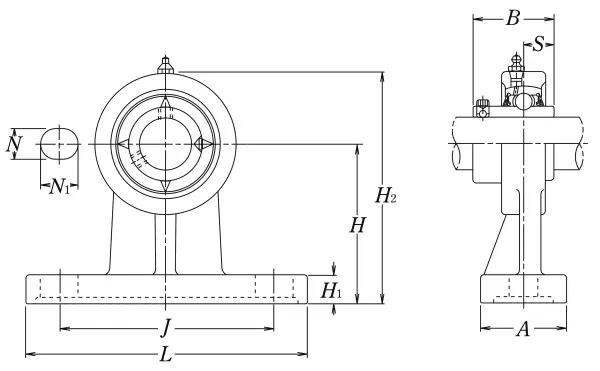

Nominal Dimensions
d
40
mm
Bore diameter
N1
21
mm
Length of attachment bolt hole
L
184
mm
Overall length
H
100
mm
Height of spherical seat centre
J
136
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
70
mm
Base width
H1
20
mm
Distance between bottoms of piloting grooves
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
H2
150
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
3.2
kg
Mass approx.
