NSK UCIP210D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCIP210D1
Included products
Bearing
Housing
IP210D1
Housing

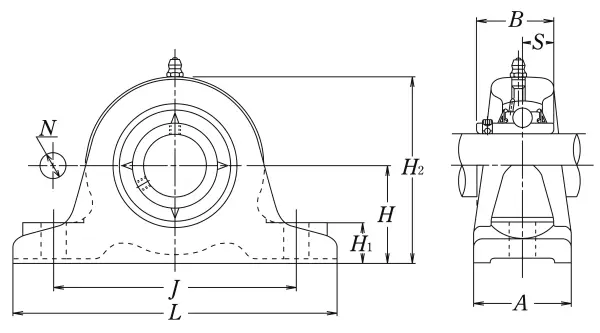

Nominal Dimensions
d
50
mm
Bore diameter
L
220
mm
Overall length
H
70
mm
Height of spherical seat centre
J
170
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A
60
mm
Base width
H1
28
mm
Distance between bottoms of piloting grooves
B
51.6
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
H2
132
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
mass
4.3
kg
Mass approx.
