NSK UCIP317D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCIP317D1
Included products
Bearing
Housing
IP317D1
Housing

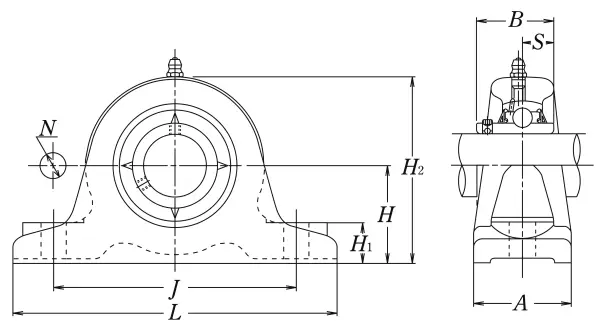

Nominal Dimensions
d
85
mm
Bore diameter
L
370
mm
Overall length
H
130
mm
Height of spherical seat centre
J
310
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A
85
mm
Base width
H1
40
mm
Distance between bottoms of piloting grooves
B
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
H2
255
mm
Overall height
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
133
kN
Basic dynamic load rating
C0r
97
kN
Basic static load rating
Mass
mass
24
kg
Mass approx.
