NSK UCM320-60D1
Take-up Stretcher UnitsTM
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCM320-60D1
Included products
Bearing

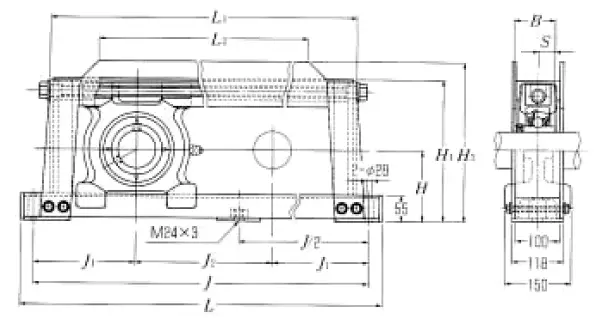

Nominal Dimensions
d
100
mm
Bore diameter
L
1320
mm
Overall length
H
200
mm
Overall height
J
1240
mm
Distance between attachment bolts
J1
320
mm
Distance between attachment bolts
J,J2
600
mm
Travel
H1
403
mm
Overall Height
B
108
mm
Width of inner ring
S
42
mm
Distance from Opposite side face of locking device to raceway centre
J2
600
mm
Travel
L1
1163
mm
Foot width
H2
430
mm
Overall height
Mounting information
G
M24
Bolt size
Permissible housing load
CR
19.6
kN
Radial
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
