NSK UCP218D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCP218D1
Included products
Bearing
Housing
P218D1
Housing

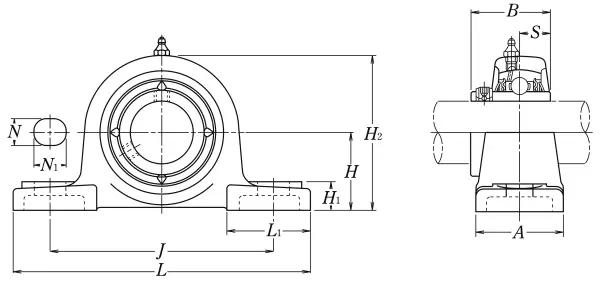

Nominal Dimensions
d
90
mm
Bore diameter
N1
30
mm
Length of attachment bolt hole
L
327
mm
Overall length
H
101.6
mm
Height of spherical seat centre
J
262
mm
Distance between attachment bolts
N
27
mm
Diameter of attachment bolt hole
A
88
mm
Base width
H1
33
mm
Distance between bottoms of piloting grooves
B4
0.6
mm
Width of inner ring
B1
86.79
mm
Width of inner ring
B
96
mm
Width of inner ring
S
39.7
mm
Distance from Opposite side face of locking device to raceway centre
L1
90
mm
Foot width
H2
200
mm
Overall height
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
96
kN
Basic dynamic load rating
C0r
71.5
kN
Basic static load rating
Mass
mass
13
kg
Mass approx.
