NSK UCP319D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCP319D1
Included products
Bearing
Housing
P319D1
Housing

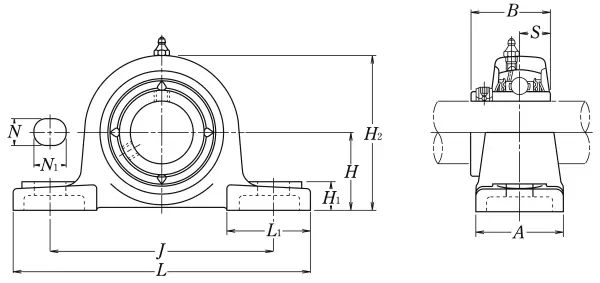

Nominal Dimensions
d
95
mm
Bore diameter
N1
50
mm
Length of attachment bolt hole
L
470
mm
Overall length
H
125
mm
Height of spherical seat centre
J
360
mm
Distance between attachment bolts
N
36
mm
Diameter of attachment bolt hole
A
120
mm
Base width
H1
45
mm
Distance between bottoms of piloting grooves
B
103
mm
Width of inner ring
S
41
mm
Distance from Opposite side face of locking device to raceway centre
L1
125
mm
Foot width
H2
250
mm
Overall height
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
Mass
mass
29
kg
Mass approx.
