NSK UCPG207D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPG207D1
Included products
Bearing
Housing
PG207D1
Housing

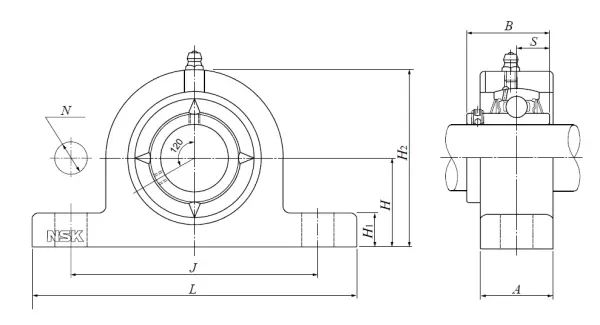

Nominal Dimensions
d
35
mm
Bore diameter
L
167
mm
Overall length
H
47.6
mm
Height of spherical seat centre
J
127
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
35
mm
Base width
H1
18
mm
Distance between bottoms of piloting grooves
B
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
H2
93
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
