NSK UCPG212D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPG212D1
Included products
Bearing
Housing
PG212D1
Housing

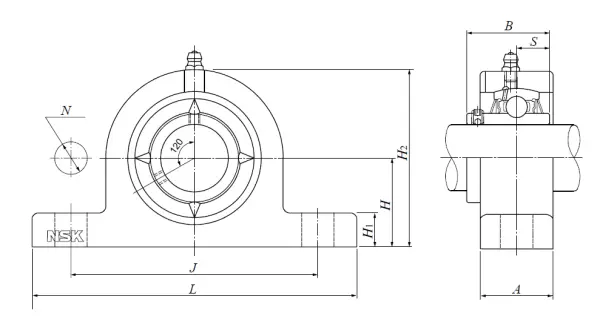

Nominal Dimensions
d
60
mm
Bore diameter
L
241
mm
Overall length
H
69.8
mm
Height of spherical seat centre
J
184
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A
50
mm
Base width
H1
25
mm
Distance between bottoms of piloting grooves
B
65.1
mm
Width of inner ring
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
H2
138
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
4.6
kg
Mass approx.
