NSK UCPG305D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPG305D1
Included products
Bearing
Housing
PG305D1
Housing

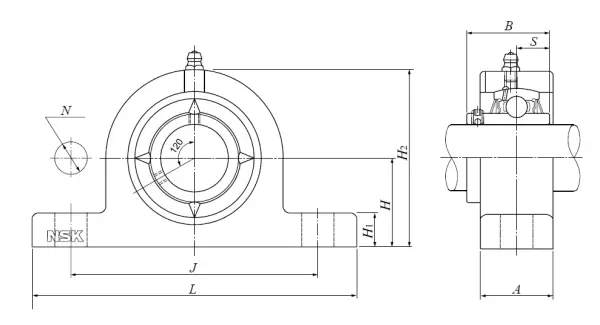

Nominal Dimensions
d
25
mm
Bore diameter
L
175
mm
Overall length
H
45
mm
Height of spherical seat centre
J
132
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
35
mm
Base width
H1
15
mm
Distance between bottoms of piloting grooves
B
38
mm
Width of inner ring
S
15
mm
Distance from Opposite side face of locking device to raceway centre
H2
85
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
mass
1.4
kg
Mass approx.
