NSK UCPG306D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPG306D1
Included products
Bearing
Housing
PG306D1
Housing

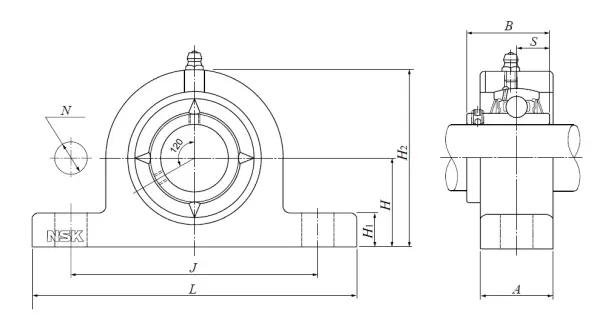

Nominal Dimensions
d
30
mm
Bore diameter
L
180
mm
Overall length
H
50
mm
Height of spherical seat centre
J
140
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
35
mm
Base width
H1
18
mm
Distance between bottoms of piloting grooves
B
43
mm
Width of inner ring
S
17
mm
Distance from Opposite side face of locking device to raceway centre
H2
95
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
26.7
kN
Basic dynamic load rating
C0r
15
kN
Basic static load rating
Mass
mass
1.8
kg
Mass approx.
