NSK UCPG318D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPG318D1
Included products
Bearing
Housing
PG318D1
Housing

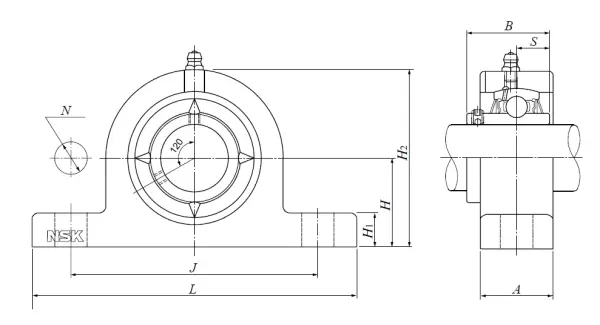

Nominal Dimensions
d
90
mm
Bore diameter
L
430
mm
Overall length
H
118
mm
Height of spherical seat centre
J
330
mm
Distance between attachment bolts
N
32
mm
Diameter of attachment bolt hole
A
80
mm
Base width
H1
45
mm
Distance between bottoms of piloting grooves
B
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
H2
235
mm
Overall height
Mounting information
G
M27
Bolt size
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
mass
24
kg
Mass approx.
