NSK UCPG321D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCPG321D1
Included products
Bearing
Housing
PG321D1
Housing

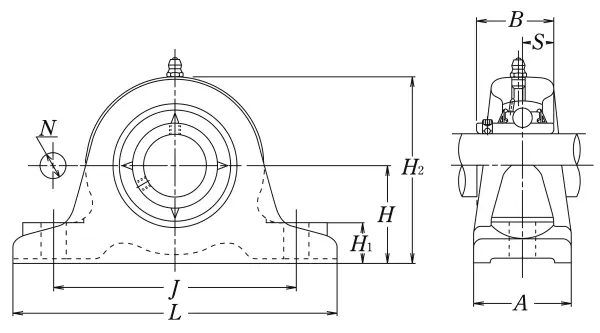

Nominal Dimensions
d
105
mm
Bore diameter
L
490
mm
Overall length
H
140
mm
Height of spherical seat centre
J
380
mm
Distance between attachment bolts
N
35
mm
Diameter of attachment bolt hole
A
90
mm
Base width
H1
50
mm
Distance between bottoms of piloting grooves
B
112
mm
Width of inner ring
S
44
mm
Distance from Opposite side face of locking device to raceway centre
H2
280
mm
Overall height
Mounting information
G
M30
Bolt size
Basic Load Ratings
Cr
184
kN
Basic dynamic load rating
C0r
153
kN
Basic static load rating
Mass
mass
35
kg
Mass approx.
