NSK UCPG322D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCPG322D1
Included products
Bearing
Housing
PG322D1
Housing

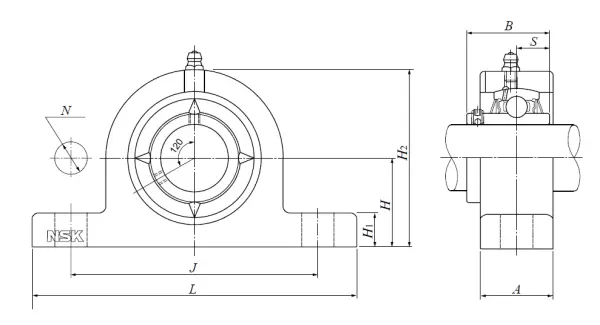

Nominal Dimensions
d
110
mm
Bore diameter
L
520
mm
Overall length
H
150
mm
Height of spherical seat centre
J
400
mm
Distance between attachment bolts
N
38
mm
Diameter of attachment bolt hole
A
100
mm
Base width
H1
55
mm
Distance between bottoms of piloting grooves
B
117
mm
Width of inner ring
S
46
mm
Distance from Opposite side face of locking device to raceway centre
H2
300
mm
Overall height
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
205
kN
Basic dynamic load rating
C0r
179
kN
Basic static load rating
Mass
mass
45
kg
Mass approx.
