NSK UCPG328D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCPG328D1
Included products
Bearing
Housing
PG328D1
Housing

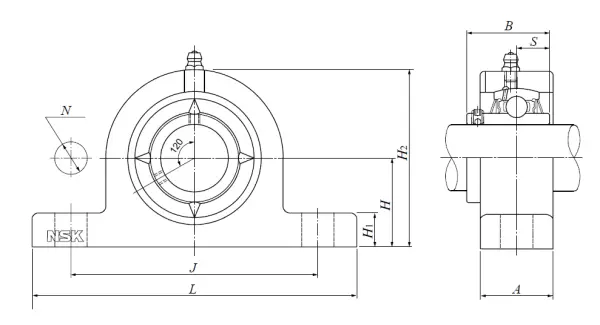

Nominal Dimensions
d
140
mm
Bore diameter
L
620
mm
Overall length
H
200
mm
Height of spherical seat centre
J
500
mm
Distance between attachment bolts
N
38
mm
Diameter of attachment bolt hole
A
110
mm
Base width
H1
75
mm
Distance between bottoms of piloting grooves
B
145
mm
Width of inner ring
S
59
mm
Distance from Opposite side face of locking device to raceway centre
H2
390
mm
Overall height
Mounting information
G
M33
Bolt size
Basic Load Ratings
Cr
253
kN
Basic dynamic load rating
C0r
246
kN
Basic static load rating
Mass
mass
89
kg
Mass approx.
