NSK UCPX05D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPX05D1
Included products
Bearing
Housing
PX05D1
Housing

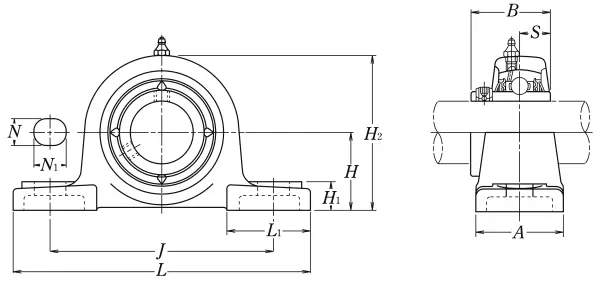

Nominal Dimensions
d
25
mm
Bore diameter
N1
20
mm
Length of attachment bolt hole
L
159
mm
Overall length
H
44.4
mm
Height of spherical seat centre
J
119
mm
Distance between attachment bolts
N
17
mm
Diameter of attachment bolt hole
A
51
mm
Base width
H1
18
mm
Distance between bottoms of piloting grooves
B
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
L1
50
mm
Foot width
H2
85
mm
Overall height
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.5
kg
Mass approx.
