NSK UCPX08D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPX08D1
Included products
Bearing
Housing
PX08D1
Housing

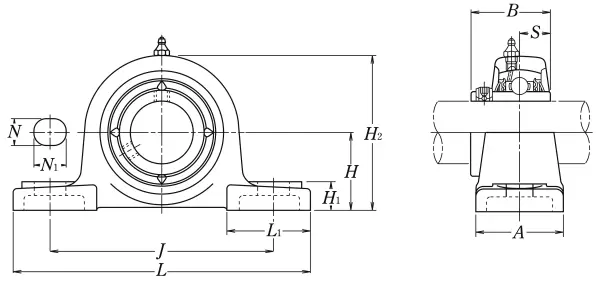

Nominal Dimensions
d
40
mm
Bore diameter
N1
23
mm
Length of attachment bolt hole
L
222
mm
Overall length
H
58.7
mm
Height of spherical seat centre
J
156
mm
Distance between attachment bolts
N
20
mm
Diameter of attachment bolt hole
A
67
mm
Base width
H1
26
mm
Distance between bottoms of piloting grooves
B4
0.4
mm
Width of inner ring
B1
55.6
mm
Width of inner ring
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
L1
65
mm
Foot width
H2
111
mm
Overall height
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
2.9
kg
Mass approx.
