NSK UCPX11D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCPX11D1
Included products
Bearing
Housing
PX11D1
Housing

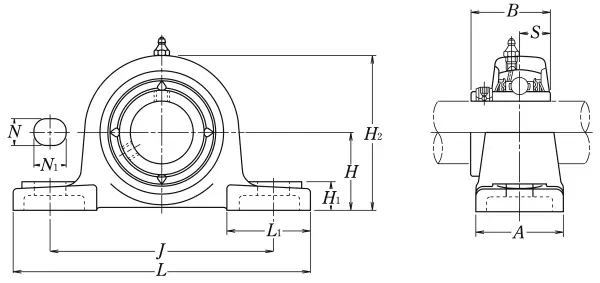

Nominal Dimensions
d
55
mm
Bore diameter
N1
28
mm
Length of attachment bolt hole
L
260
mm
Overall length
H
69.8
mm
Height of spherical seat centre
J
184
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A
79
mm
Base width
H1
30
mm
Distance between bottoms of piloting grooves
B
65.1
mm
Width of inner ring
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
L1
75
mm
Foot width
H2
137
mm
Overall height
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
5.4
kg
Mass approx.
