NSK UCPX18D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCPX18D1
Included products
Bearing
Housing
PX18D1
Housing

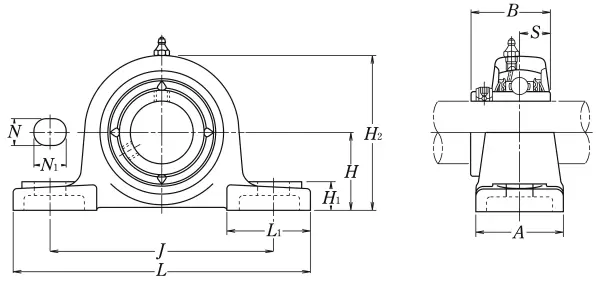

Nominal Dimensions
d
90
mm
Bore diameter
N1
30
mm
Length of attachment bolt hole
L
381
mm
Overall length
H
101.6
mm
Height of spherical seat centre
J
283
mm
Distance between attachment bolts
N
27
mm
Diameter of attachment bolt hole
A
111
mm
Base width
H1
40
mm
Distance between bottoms of piloting grooves
B
104
mm
Width of inner ring
S
42.9
mm
Distance from Opposite side face of locking device to raceway centre
L1
110
mm
Foot width
H2
206
mm
Overall height
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
109
kN
Basic dynamic load rating
C0r
82
kN
Basic static load rating
Mass
mass
16
kg
Mass approx.
