NSK UCS305
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCS305
Included products
Bearing

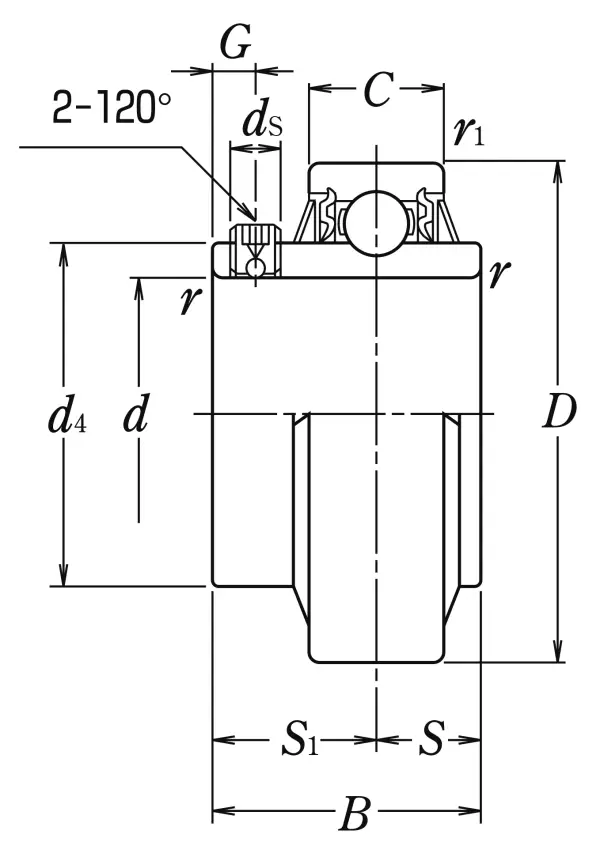

Nominal Dimensions
d
25
mm
Bore diameter
D
62
mm
Outside diameter
B,B4
38
mm
Width of inner ring
C
20
mm
Outer ring width
r(min.)
1.5
mm
Chamfer dimension
r1(min.)
0.6
mm
Chamfer dimension
S1
23
mm
Distance from locking device side face to raceway centre
G
6
mm
Distance face to thread centre
ds
M 6×0.75
Set screw
d4
36.8
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
Mass approx.
0.37
kg
Mass approx.
