NSK UCS308
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
UCS308
Included products
Bearing

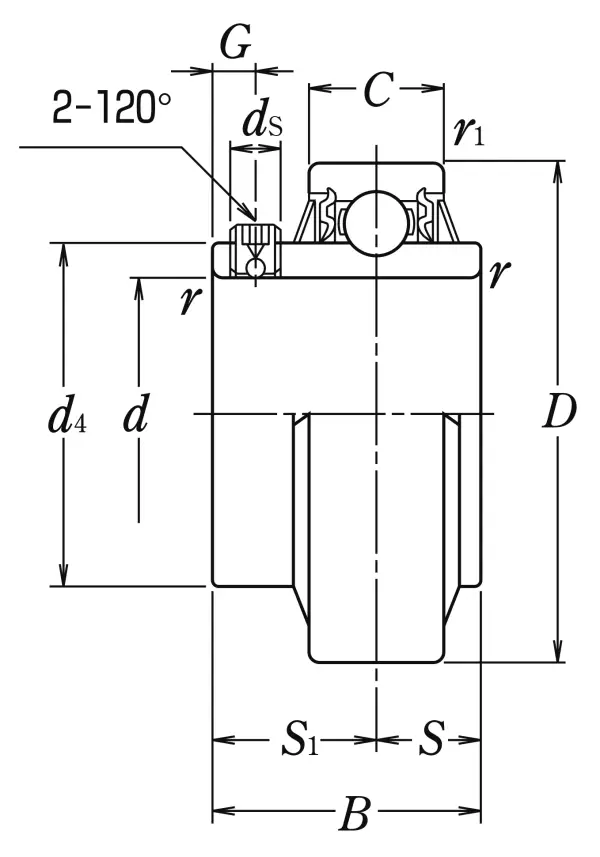

Nominal Dimensions
d
40
mm
Bore diameter
D
90
mm
Outside diameter
B,B4
52
mm
Width of inner ring
C
27
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
r1(min.)
1
mm
Chamfer dimension
S1
33
mm
Distance from locking device side face to raceway centre
G
10
mm
Distance face to thread centre
ds
M10×1.25
Set screw
d4
56
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
Mass
Mass approx.
1
kg
Mass approx.
