NSK UCS312
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCS312
Included products
Bearing

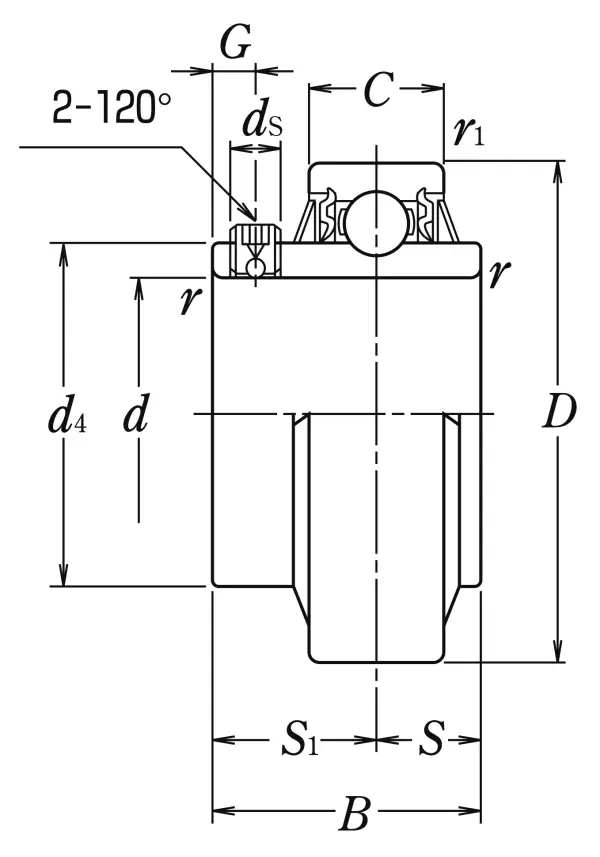

Nominal Dimensions
d
60
mm
Bore diameter
D
130
mm
Outside diameter
B,B4
71
mm
Width of inner ring
C
36
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
r1(min.)
1.5
mm
Chamfer dimension
S1
45
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
M12×1.5
Set screw
d4
82.7
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
Mass
Mass approx.
2.7
kg
Mass approx.
