NSK UCS314
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCS314
Included products
Bearing

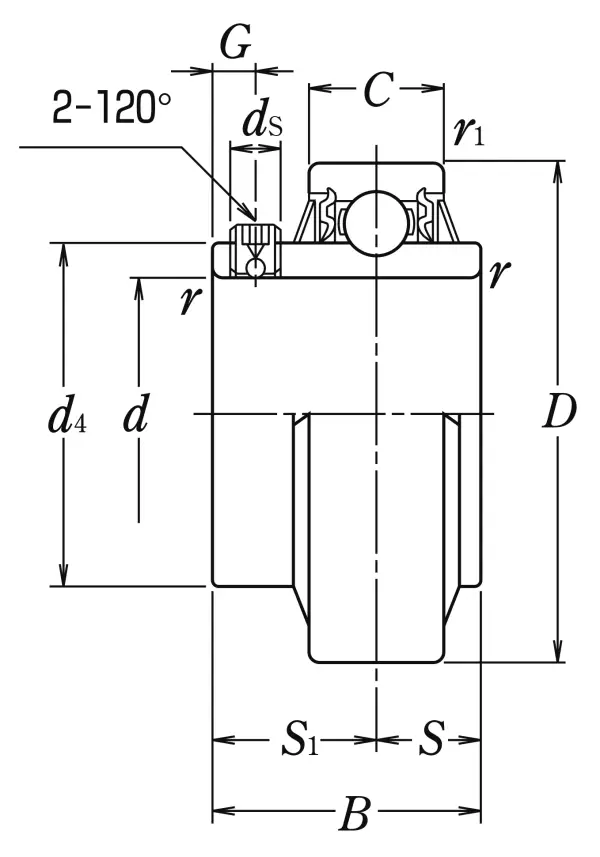

Nominal Dimensions
d
70
mm
Bore diameter
D
150
mm
Outside diameter
B,B4
78
mm
Width of inner ring
C
41
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
r1(min.)
2
mm
Chamfer dimension
S1
45
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
M12×1.5
Set screw
d4
94.8
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
104
kN
Basic dynamic load rating
C0r
68
kN
Basic static load rating
Mass
Mass approx.
4.03
kg
Mass approx.
