NSK UCUP205D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCUP205D1
Included products
Bearing
Housing
UP205D1
Housing

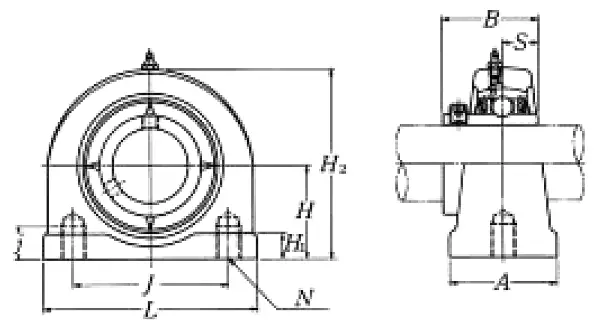

Nominal Dimensions
d
25
mm
Bore diameter
L
84
mm
Overall length
H
36.5
mm
Height of spherical seat centre
J
56
mm
Distance between attachment bolts
A
38
mm
Base width
H1
12
mm
Distance between bottoms of piloting grooves
B
34.1
mm
Width of inner ring
S
14.3
mm
Distance from Opposite side face of locking device to raceway centre
j
15
mm
Thread length
H2
72
mm
Overall height
Mounting information
N
M10×1.5
Set screw
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
mass
0.7
kg
Mass approx.
