NSK UCUP206D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCUP206D1
Included products
Bearing
Housing
UP206D1
Housing

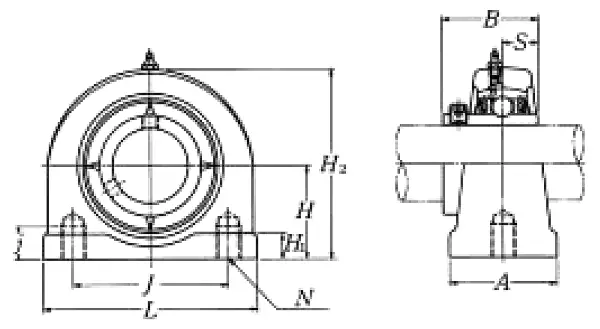

Nominal Dimensions
d
30
mm
Bore diameter
L
94
mm
Overall length
H
42.9
mm
Height of spherical seat centre
J
66
mm
Distance between attachment bolts
A
48
mm
Base width
H1
12
mm
Distance between bottoms of piloting grooves
B
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
j
18
mm
Thread length
H2
84
mm
Overall height
Mounting information
N
M14×2
Set screw
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.1
kg
Mass approx.
