NSK UCUP207D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCUP207D1
Included products
Bearing
Housing
UP207D1
Housing

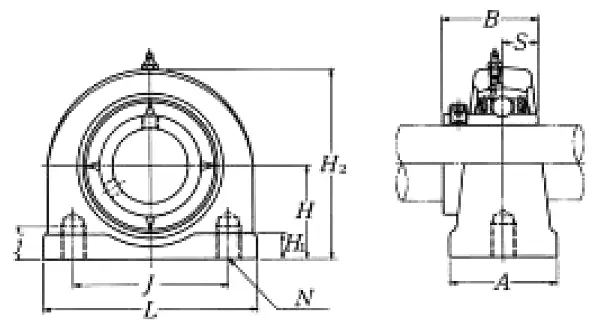

Nominal Dimensions
d
35
mm
Bore diameter
L
110
mm
Overall length
H
47.6
mm
Height of spherical seat centre
J
80
mm
Distance between attachment bolts
A
48
mm
Base width
H1
13
mm
Distance between bottoms of piloting grooves
B
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
j
20
mm
Thread length
H2
95
mm
Overall height
Mounting information
N
M14×2
Set screw
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
