NSK UCUP209D1
Pillow Block Bearing Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCUP209D1
Included products
Bearing
Housing
UP209D1
Housing

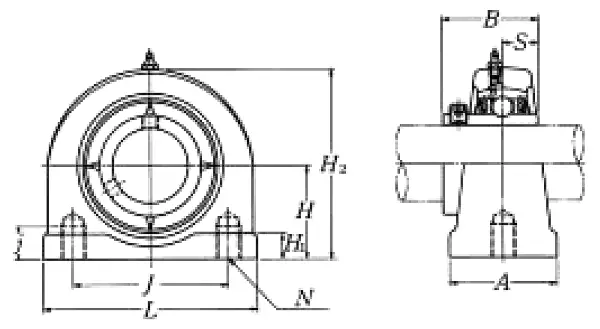

Nominal Dimensions
d
45
mm
Bore diameter
L
120
mm
Overall length
H
54.2
mm
Height of spherical seat centre
J
90
mm
Distance between attachment bolts
A
54
mm
Base width
H1
13
mm
Distance between bottoms of piloting grooves
B
49.2
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
j
25
mm
Thread length
H2
108
mm
Overall height
Mounting information
N
M14×2
Set screw
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
Mass
mass
2.1
kg
Mass approx.
