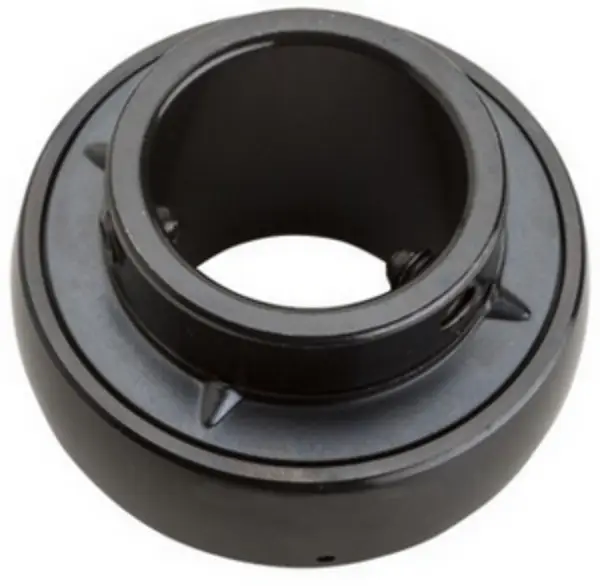

NSK UCX15D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCX15D1
Included products
Bearing

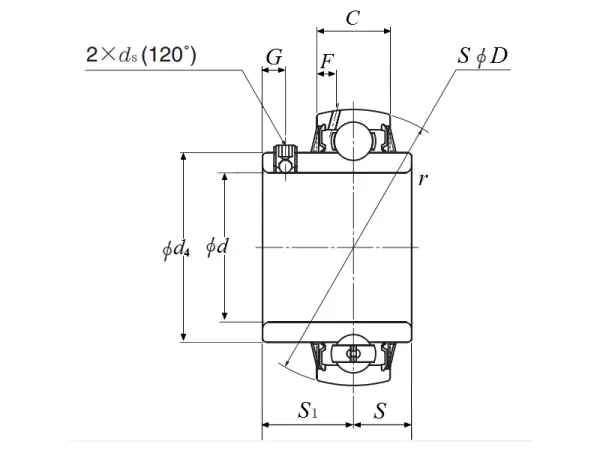

Nominal Dimensions
d
75
mm
Bore diameter
D
140
mm
Outside diameter
B,B4
82.6
mm
Width of inner ring
C
35
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
S1
49.3
mm
Distance from locking device side face to raceway centre
G
12
mm
Distance face to thread centre
ds
M12×1.5
Set screw
Ca
8
mm
Distance from oil hole centre to raceway centre
d4
98.1
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
Mass approx.
3.11
kg
Mass approx.
