NSK UELFLU208D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELFLU208D1
Included products
Bearing
Housing
FLU208D1
Housing

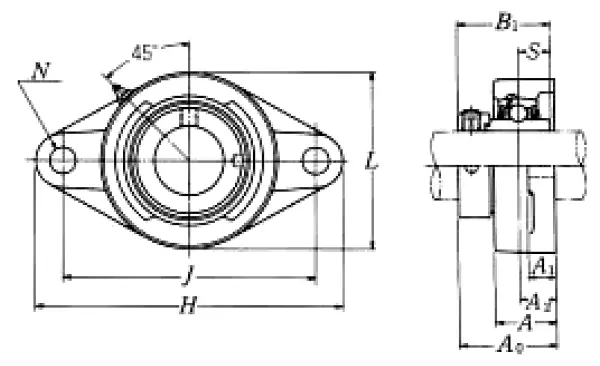

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
105
mm
Overall height
J
143.5
mm
Distance between attachment bolts
N
14
mm
Diameter of attachment bolt hole
A2
24
mm
Flange width
A1
17
mm
Flange width
A
39
mm
Base width
A0
58.9
mm
Overall width
B,B1,B2
56.3
mm
Width of inner ring
H
172
mm
Overall length
S
21.4
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M12
Bolt size
Basic Load Ratings
Cr
29.1
kN
Basic dynamic load rating
C0r
17.8
kN
Basic static load rating
Mass
mass
1.9
kg
Mass approx.
