NSK UELS205LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS205LN
Included products
Bearing

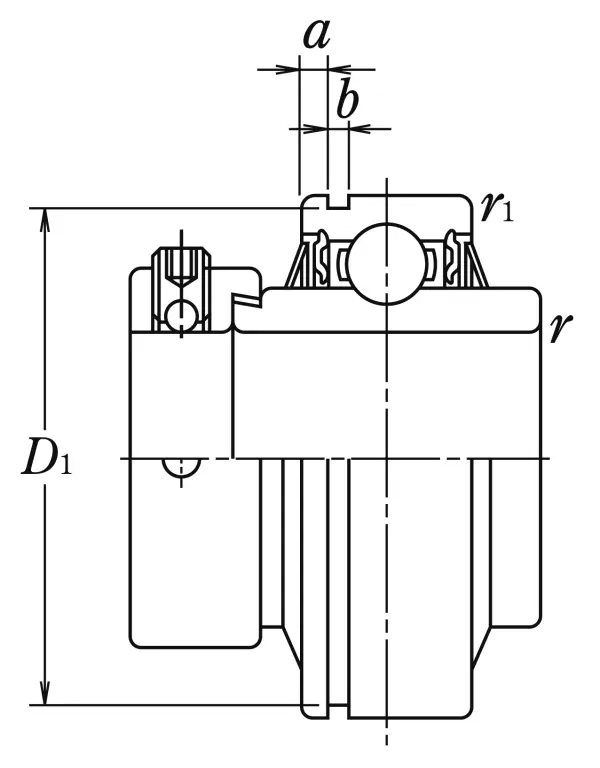

Nominal Dimensions
d
25
mm
Bore diameter
D
52
mm
Outside diameter
B1
44.4
mm
Overall bearing width
B,B4
34.9
mm
Width of inner ring
C
17
mm
Outer ring width
r(min.)
1
mm
Chamfer dimension
r1(min.)
0.6
mm
Chamfer dimension
S1
26.95
mm
Distance from locking device side face to raceway centre
G
4.8
mm
Distance face to thread centre
ds
M 6×0.75
Set screw
d3
38
mm
Outside diameter of locking collar
D1
49.73
mm
Diameter of snap ring groove
B5
13.5
mm
Width of locking collar
a
3.2
mm
Distance outer ring from side face to snap ring groove
b
1.5
mm
Width of snap ring groove
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
Mass
Mass approx.
0.27
kg
Mass approx.
