NSK UELS207LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS207LN
Included products
Bearing

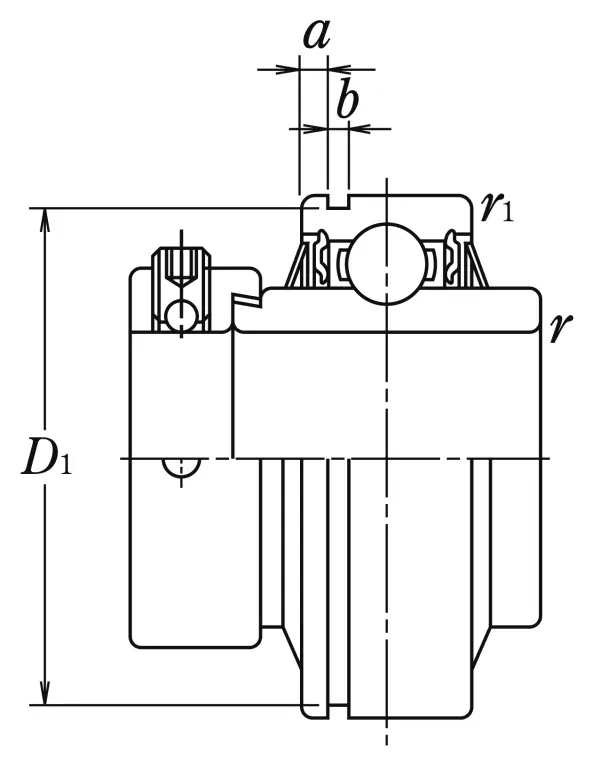

Nominal Dimensions
d
35
mm
Bore diameter
D
72
mm
Outside diameter
B1
51.1
mm
Overall bearing width
B,B4
37.6
mm
Width of inner ring
C
20
mm
Outer ring width
r(min.)
1.5
mm
Chamfer dimension
r1(min.)
1.5
mm
Chamfer dimension
S1
32.3
mm
Distance from locking device side face to raceway centre
G
6.8
mm
Distance face to thread centre
ds
M10×1.25
Set screw
d3
55.5
mm
Outside diameter of locking collar
D1
68.81
mm
Diameter of snap ring groove
B5
17.5
mm
Width of locking collar
a
3.3
mm
Distance outer ring from side face to snap ring groove
b
2.05
mm
Width of snap ring groove
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
Mass approx.
0.6
kg
Mass approx.
