NSK UELS211LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS211LN
Included products
Bearing

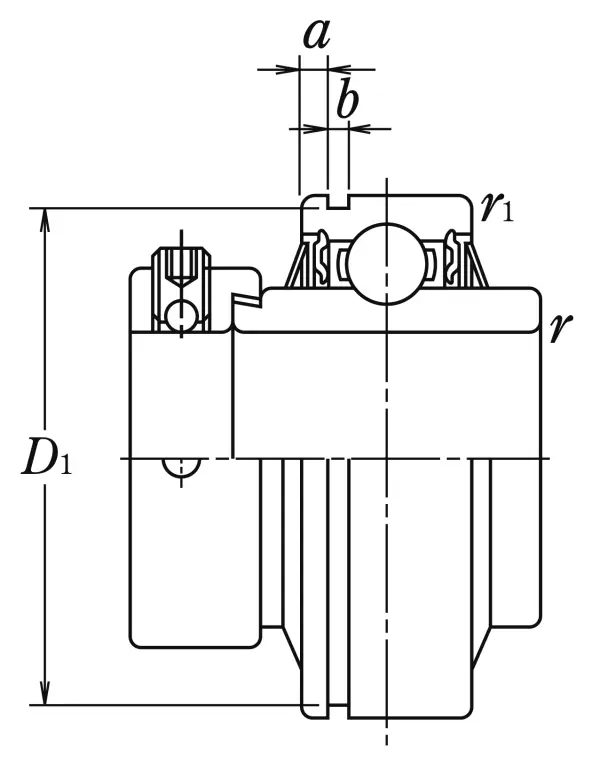

Nominal Dimensions
d
55
mm
Bore diameter
D
100
mm
Outside diameter
B1
71.4
mm
Overall bearing width
B,B4
55.5
mm
Width of inner ring
C
25
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
r1(min.)
2
mm
Chamfer dimension
S1
43.65
mm
Distance from locking device side face to raceway centre
G
8
mm
Distance face to thread centre
ds
M10×1.25
Set screw
d3
76
mm
Outside diameter of locking collar
D1
96.8
mm
Diameter of snap ring groove
B5
20.7
mm
Width of locking collar
a
4.4
mm
Distance outer ring from side face to snap ring groove
b
2.85
mm
Width of snap ring groove
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
Mass approx.
1.32
kg
Mass approx.
