NSK UELS212LN
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS212LN
Included products
Bearing

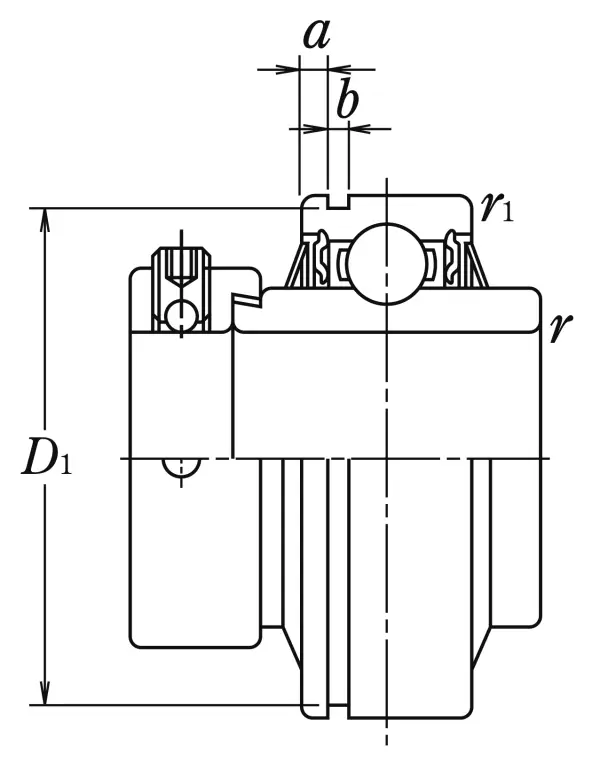

Nominal Dimensions
d
60
mm
Bore diameter
D
110
mm
Outside diameter
B1
77.8
mm
Overall bearing width
B,B4
61.9
mm
Width of inner ring
C
27
mm
Outer ring width
r(min.)
2
mm
Chamfer dimension
r1(min.)
2
mm
Chamfer dimension
S1
46.85
mm
Distance from locking device side face to raceway centre
G
8
mm
Distance face to thread centre
ds
M10×1.25
Set screw
d3
84
mm
Outside diameter of locking collar
D1
106.81
mm
Diameter of snap ring groove
B5
22.3
mm
Width of locking collar
a
4.4
mm
Distance outer ring from side face to snap ring groove
b
2.85
mm
Width of snap ring groove
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
Mass approx.
1.93
kg
Mass approx.
