NSK UELS305
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS305
Included products
Bearing

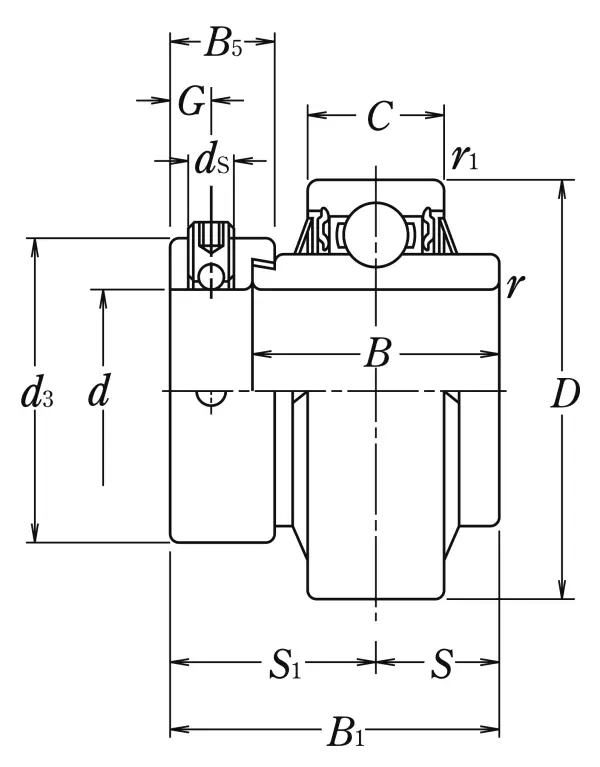

Nominal Dimensions
d
25
mm
Bore diameter
D
62
mm
Outside diameter
B1
46.8
mm
Overall bearing width
B,B4
34.9
mm
Width of inner ring
C
20
mm
Outer ring width
r(min.)
1.5
mm
Chamfer dimension
r1(min.)
0.6
mm
Chamfer dimension
S1
30.1
mm
Distance from locking device side face to raceway centre
G
6
mm
Distance face to thread centre
ds
M 8×1
Set screw
d3
42.8
mm
Outside diameter of locking collar
B5
15.9
mm
Width of locking collar
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
Mass approx.
0.45
kg
Mass approx.
