NSK UELS313
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS313
Included products
Bearing

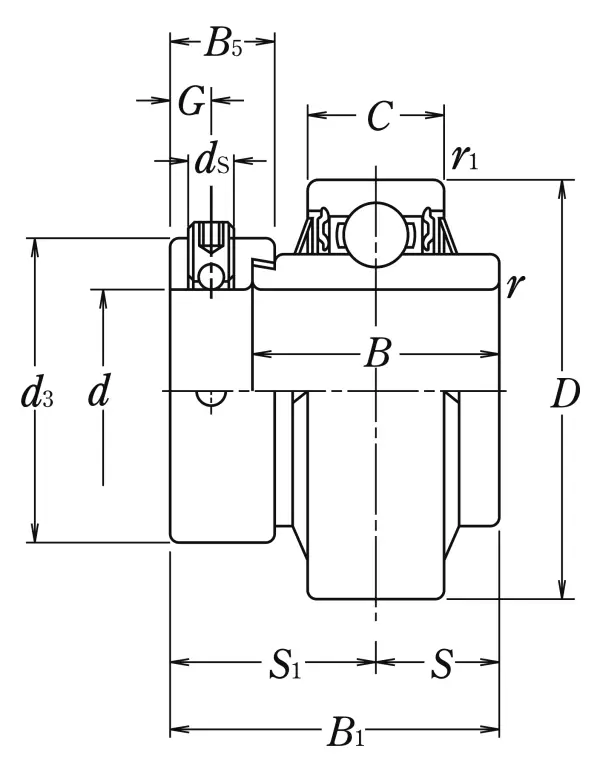

Nominal Dimensions
d
65
mm
Bore diameter
D
140
mm
Outside diameter
B1
85.7
mm
Overall bearing width
B,B4
65.1
mm
Width of inner ring
C
39
mm
Outer ring width
r(min.)
2.5
mm
Chamfer dimension
r1(min.)
2
mm
Chamfer dimension
S1
53.15
mm
Distance from locking device side face to raceway centre
G
10.3
mm
Distance face to thread centre
ds
M12×1.5
Set screw
d3
97
mm
Outside diameter of locking collar
B5
27
mm
Width of locking collar
Basic Load Ratings
Cr
92.5
kN
Basic dynamic load rating
C0r
60
kN
Basic static load rating
Mass
Mass approx.
3.79
kg
Mass approx.
