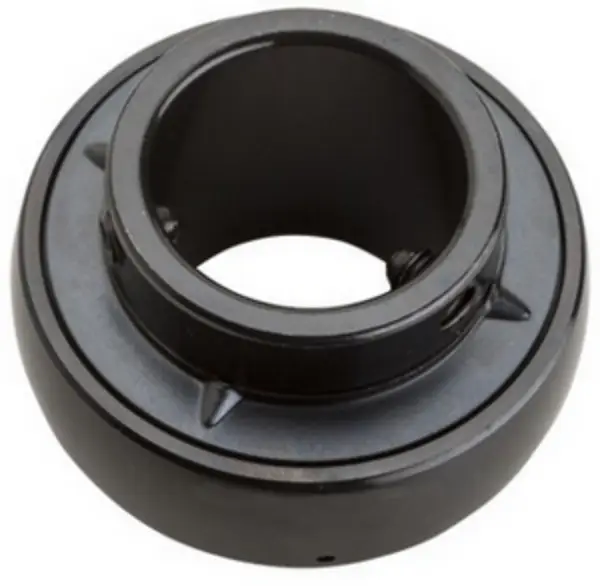

NSK UELS318
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UELS318
Included products
Bearing

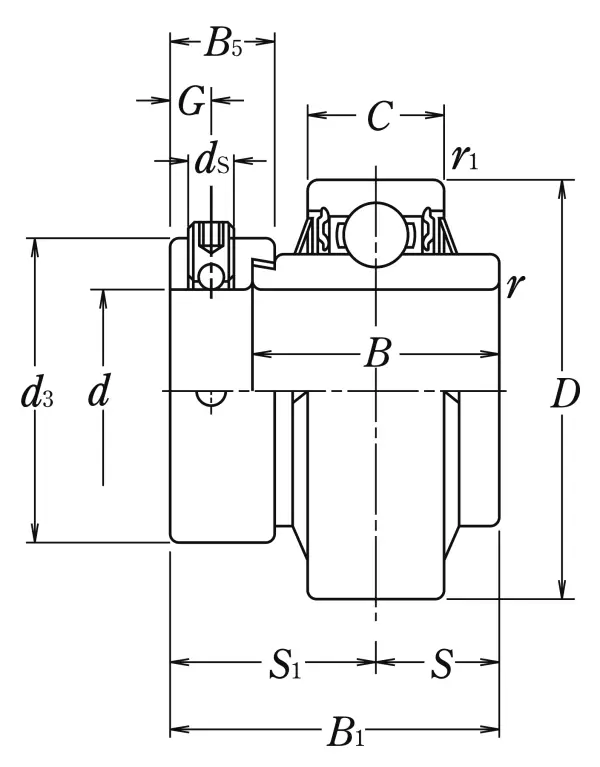

Nominal Dimensions
d
90
mm
Bore diameter
D
190
mm
Outside diameter
B1
115.9
mm
Overall bearing width
B,B4
87.3
mm
Width of inner ring
C
49
mm
Outer ring width
r(min.)
3
mm
Chamfer dimension
r1(min.)
2.5
mm
Chamfer dimension
S1
72.25
mm
Distance from locking device side face to raceway centre
G
14.3
mm
Distance face to thread centre
ds
M20×1.5
Set screw
d3
133
mm
Outside diameter of locking collar
B5
36.5
mm
Width of locking collar
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
Mass approx.
9.34
kg
Mass approx.
