NSK UK308D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UK308D1
Included products
Bearing
Associated products
Adapter sleeve

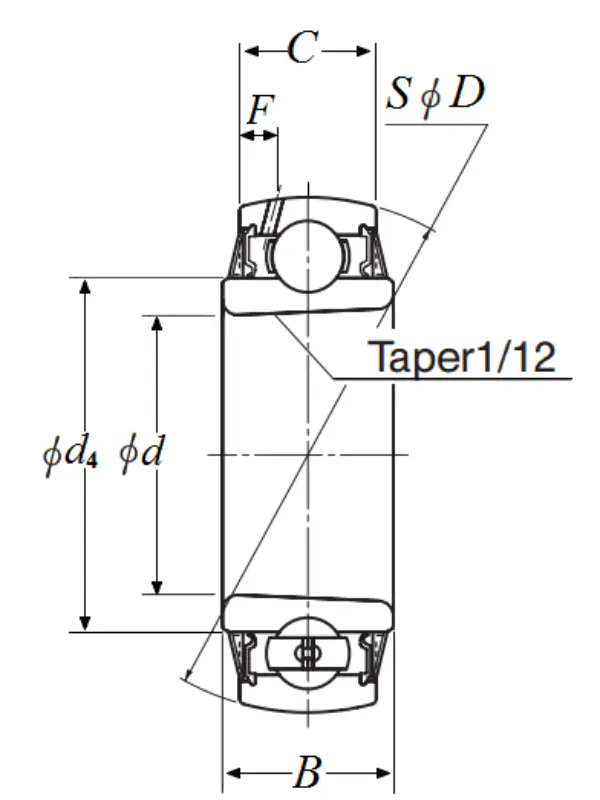

Nominal Dimensions
d
40
mm
Bore diameter
D
90
mm
Outside diameter
B1
46
mm
Overall bearing width
d1
35
mm
Sleeve bore diameter
d2
58
mm
Outside diameter lock nut
B,B4
34
mm
Width of inner ring
B2
10
mm
Width lock nut including lock washer
C
27
mm
Outer ring width
Ca
6.1
mm
Distance from oil hole centre to raceway centre
d4
56
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
Mass
Mass approx.
1
kg
Mass approx.
