NSK UK316D1
Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
UK316D1
Included products
Bearing
Associated products
Adapter sleeve

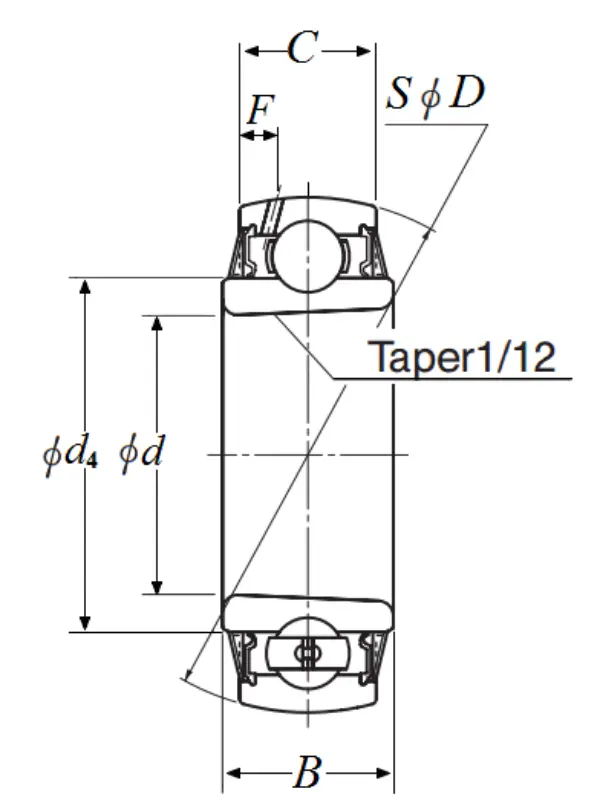

Nominal Dimensions
d
80
mm
Bore diameter
D
170
mm
Outside diameter
B1
78
mm
Overall bearing width
d1
70
mm
Sleeve bore diameter
d2
105
mm
Outside diameter lock nut
B,B4
58
mm
Width of inner ring
B2
17
mm
Width lock nut including lock washer
C
45
mm
Outer ring width
Ca
11.1
mm
Distance from oil hole centre to raceway centre
d4
107.9
mm
Outside diameter of inner ring
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
Mass
Mass approx.
5.75
kg
Mass approx.
