NSK UKFE205D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFE205D1
Included products
Bearing
Housing
FE205D1
Housing
Associated products
Adapter sleeve

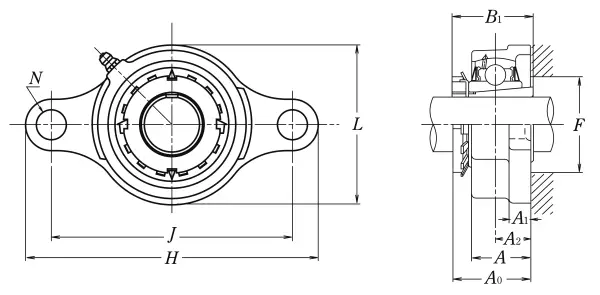

Nominal Dimensions
d
20
mm
Bore diameter
L,L1
62
mm
Overall height
J
99
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
10
mm
Flange width
A
26
mm
Base width
A0
35.5
mm
Overall width
B,B1,B2
35
mm
Width of inner ring
F
30
mm
Diameter of housing abutment
H
127
mm
Overall length
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
14
kN
Basic dynamic load rating
C0r
7.85
kN
Basic static load rating
