NSK UKFE209D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFE209D1
Included products
Bearing
Housing
FE209D1
Housing
Associated products
Adapter sleeve

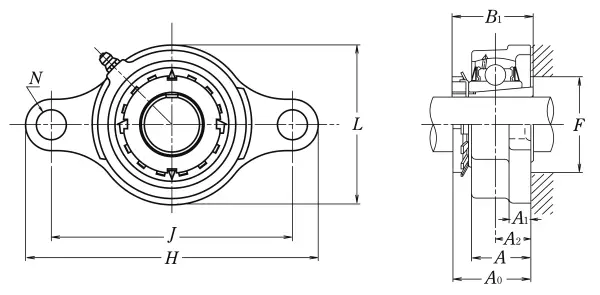

Nominal Dimensions
d
40
mm
Bore diameter
L,L1
101
mm
Overall height
J
148
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A2
22
mm
Flange width
A1
13
mm
Flange width
A
36
mm
Base width
A0
48.5
mm
Overall width
B,B1,B2
50
mm
Width of inner ring
F
52
mm
Diameter of housing abutment
H
180
mm
Overall length
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
32.5
kN
Basic dynamic load rating
C0r
20.4
kN
Basic static load rating
