NSK UKFL217D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFL217D1
Included products
Bearing
Housing
FL217D1
Housing
Associated products
Adapter sleeve

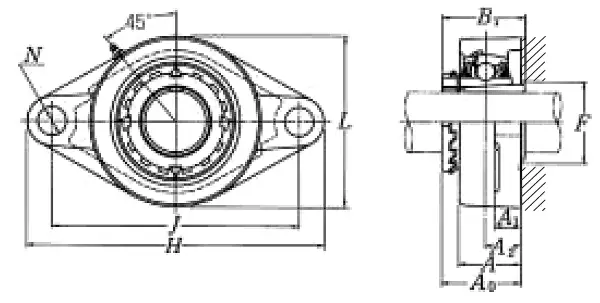

Nominal Dimensions
d
75
mm
Bore diameter
L,L1
190
mm
Overall height
J
248
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A2
36
mm
Flange width
A1
24
mm
Flange width
A
63
mm
Base width
B,B1,B2
82
mm
Width of inner ring
F
95
mm
Diameter of housing abutment
H
305
mm
Overall length
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
