NSK UKFL218D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UKFL218D1
Included products
Bearing
Housing
FL218D1
Housing
Associated products
Adapter sleeve

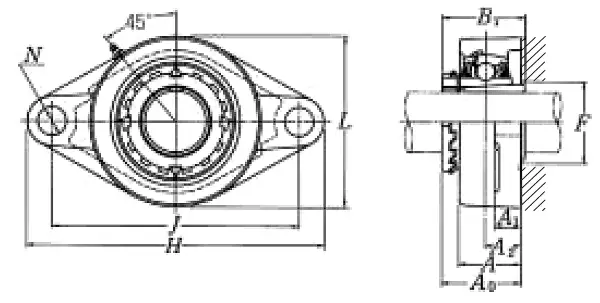

Nominal Dimensions
d
80
mm
Bore diameter
L,L1
205
mm
Overall height
J
265
mm
Distance between attachment bolts
N
25
mm
Diameter of attachment bolt hole
A2
40
mm
Flange width
A1
24
mm
Flange width
A
68
mm
Base width
B,B1,B2
86
mm
Width of inner ring
F
102
mm
Diameter of housing abutment
H
320
mm
Overall length
Mounting information
G
M22
Bolt size
Basic Load Ratings
Cr
96
kN
Basic dynamic load rating
C0r
71.5
kN
Basic static load rating
