NSK UKFL305D1
Oval Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UKFL305D1
Included products
Bearing
Housing
FL305D1
Housing
Associated products
Adapter sleeve

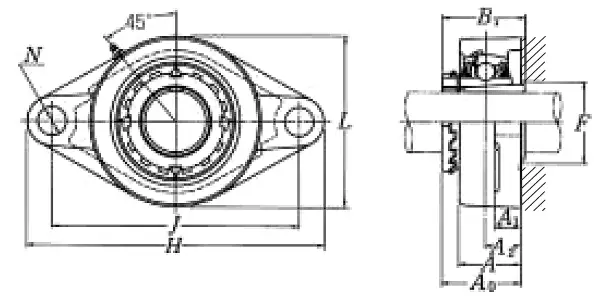

Nominal Dimensions
d
20
mm
Bore diameter
L,L1
80
mm
Overall height
J
113
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A2
16
mm
Flange width
A1
13
mm
Flange width
A
29
mm
Base width
A0
37
mm
Overall width
B,B1,B2
35
mm
Width of inner ring
F
30
mm
Diameter of housing abutment
H
150
mm
Overall length
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
